Transformer Configurations: Wye vs. Delta Connections

Your three-phase transformer is running hot, and you can't figure out why. Voltage readings look fine, and your current levels check out. The specs matched your system requirements perfectly—or so you thought. Turns out, the connection configuration was wrong from the start.

Wye and Delta configurations both deliver three-phase power in three-phase transformers, but they handle voltage, current, and fault conditions completely differently. Choose Wye when you shouldn't, and you lose the fault tolerance your system needs. Pick Delta for the wrong application, and you can't serve single-phase loads without adding more equipment.

The difference between these two connection types determines whether your transformer performs reliably or becomes a maintenance problem.

Understanding what each configuration does helps you avoid the overheating, voltage instability, and equipment failures that cost time and money.

What Are Wye and Delta Configurations?

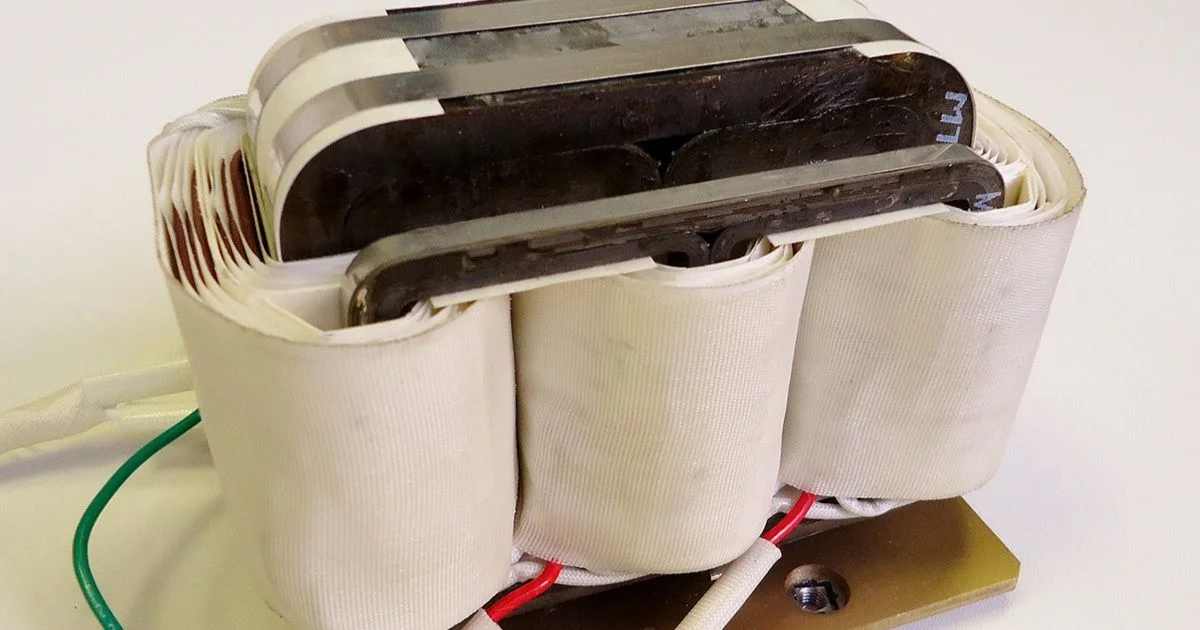

Three-phase transformers connect windings in two main ways: Wye (Y) and Delta (Δ). These connection patterns change how voltage and current flow through the system.

Wye Configuration Basics

A Wye configuration connects one end of each winding to a common central point called the neutral. The other end connects to one of the three phases.

When you look at a wiring diagram, the three windings form a Y shape.

This connection creates two different voltage levels. Line-to-line voltage (between any two phases) is 1.732 times higher than line-to-neutral voltage (from any phase to neutral). That relationship is constant in all Wye systems.

The neutral point provides a ground reference and allows single-phase loads to connect between one phase and neutral. This flexibility makes Wye configurations valuable when systems need both three-phase and single-phase power.

Delta Configuration Basics

A Delta configuration connects the windings in a closed loop. The end of each winding connects to the start of the next winding, forming a triangle. No neutral point exists in a pure Delta connection.

In this setup, line voltage equals the voltage across each winding. Current relationships change instead. Line current is 1.732 times higher than the current through each winding.

Delta connections can't provide a neutral for single-phase loads. But they offer other advantages in fault tolerance and harmonic handling that make them essential for specific applications.

Key Differences Between Wye and Delta

The practical differences help you choose the right configuration.

Voltage Relationships

Wye configurations provide two voltage options. A 480V Wye system delivers 480V line-to-line and 277V line-to-neutral. This supports both three-phase motors and single-phase lighting from one transformer.

Delta configurations provide only one voltage level. A 480V Delta system delivers 480V between any two phases.

Current Distribution

In Wye systems, line current equals winding current. In Delta systems, line current is 1.732 times the winding current.

Delta transformers carry lower winding currents than Wye transformers at the same power level. This can reduce copper losses. But line currents are higher, affecting conductor sizing.

Neutral Point Access

Wye configurations provide a neutral that can be grounded, creating a stable voltage reference. This improves safety and enables single-phase connections.

Delta configurations don't have a natural neutral point.

Harmonic Handling

In Wye systems with grounded neutral, third harmonic currents return through the neutral conductor. In Delta systems, third harmonics circulate within the Delta loop and don't appear on line conductors.

This makes Delta configurations valuable in systems with variable frequency drives or other non-linear loads.

When to Use Wye Configuration

Wye configurations excel in specific situations.

Distribution Systems

Power distribution networks commonly use Wye transformers. The neutral connection provides ground reference and allows single-phase loads to connect.

In commercial buildings, Wye systems support both three-phase HVAC and single-phase lighting from one transformer.

Voltage Step-Down Applications

When transformers step voltage down from transmission levels, Wye-Wye or Delta-Wye configurations are standard.

For systems that need both single-phase and three-phase power for industrial applications, Wye secondaries offer flexibility to serve both load types.

Unbalanced Load Handling

Systems with unbalanced loads benefit from Wye configurations. The neutral conductor carries the difference between phase currents, preventing voltage imbalances.

Medical facilities, data centres, and commercial buildings often have unbalanced single-phase loads.

Neutral Grounding Requirements

Applications requiring solidly grounded neutral use Wye configurations. Ground fault protection systems depend on this grounding to detect faults quickly.

Transformer bonding and grounding requirements under the Canadian Electrical Code establish a fault current return path back to the source, ensuring overcurrent devices trip during fault conditions and protecting equipment from damage.

When to Use Delta Configuration

Delta configurations provide advantages for certain applications.

High-Power Industrial Systems

Large industrial plants often use Delta-Delta configurations. The connection's fault tolerance keeps systems running even when one phase has problems.

If one winding fails, the system can continue operating at reduced capacity. This is valuable where unexpected shutdowns cost thousands per minute.

Harmonic-Rich Environments

Systems with variable frequency drives, rectifiers, or other non-linear loads generate harmonic currents. Delta connections handle these by trapping third harmonics within the Delta loop.

Manufacturing facilities with extensive motor controls benefit from Delta configurations on the primary side.

High-Current Applications

At the same power level, Delta windings carry lower currents than Wye windings. This reduces resistive losses and can improve efficiency.

For applications like arc furnaces or large motor drives, Delta configurations may offer better thermal performance.

Three-Phase Only Systems

When systems have no single-phase loads, Delta configurations work well. Heavy industrial equipment and large motors don't need neutral connections.

In these applications, Delta transformers are simpler and more cost-effective.

Hybrid Configurations: Primary-Secondary Combinations

Real-world three-phase transformers often combine Wye and Delta configurations between primary and secondary sides.

Delta-Wye Configuration

A common industrial configuration uses Delta primary and Wye secondary windings. The Delta primary provides fault tolerance and harmonic blocking upstream. The Wye secondary delivers both three-phase and single-phase power to loads.

This combination is standard in commercial and light industrial facilities. It captures the benefits of both connection types where they matter most.

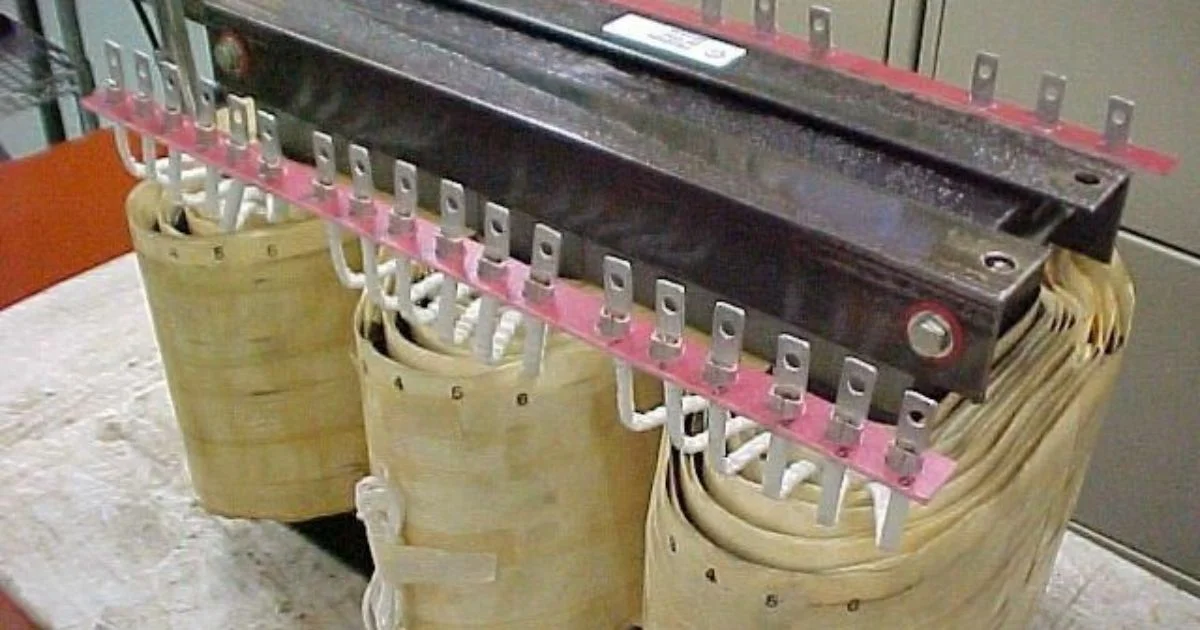

Wye-Delta Configuration

Some systems use Wye primary and Delta secondary configurations. This setup is less common but valuable in specific applications. The Wye primary connects to utility distribution systems, while the Delta secondary serves balanced three-phase loads.

Phase Shift Considerations

Different primary-secondary combinations create voltage phase shifts. Delta-Wye and Wye-Delta configurations shift secondary voltages by 30 degrees relative to primary voltages.

Understanding these phase relationships is critical when connecting transformers in parallel or when coordinating protection systems across multiple voltage levels.

Design Considerations for Configuration Selection

Choosing the right configuration requires evaluating several factors.

System Grounding

Your grounding scheme influences configuration choice. Systems using solidly grounded neutrals require Wye configurations on at least one transformer side.

Fault Protection Requirements

Protection coordination depends on the configuration type. Wye systems with grounded neutrals allow sensitive ground fault detection. Delta systems rely on phase-to-phase protection.

Load Characteristics

Analyze your load profile before selecting configuration. Systems with significant single-phase loads need Wye secondaries. Balanced three-phase loads work well with Delta connections.

Voltage Requirements

If you need two voltage levels from one transformer, Wye configuration is essential.

In North America, 480V Delta and 208Y/120V Wye are common pairings.

Common Configuration Mistakes

Certain errors appear repeatedly in three-phase transformer installations.

Wrong Configuration for Load Type

Using Delta secondary with single-phase loads requires additional transformers or creates voltage imbalances. This causes voltage regulation problems and premature equipment failure.

Match configuration to load characteristics from the start.

Inadequate Neutral Sizing

In Wye systems, undersized neutral conductors create serious problems. When harmonic currents are present, neutral current can exceed phase current.

Ignoring Harmonic Content

Systems with variable frequency drives or other non-linear loads generate harmonics. Failing to account for these leads to overheating, nuisance tripping, and equipment damage.

Analyze your load's harmonic content before finalizing transformer specifications.

Parallel Operation Errors

Connecting transformers in parallel requires matching configurations and voltage relationships. Mismatched phase shifts cause circulating currents that damage transformers.

Testing and Verification

After installation, verify your configuration performs as expected.

Phase Rotation Verification

Confirm proper phase sequence before connecting loads. Incorrect rotation damages motors immediately.

Voltage Relationship Checks

Measure line-to-line and line-to-neutral voltages. In Wye systems, line-to-line voltage should be 1.732 times line-to-neutral voltage.

Load Balance Testing

Phase currents should be reasonably balanced under normal operation. Large imbalances indicate problems.

Making the Right Choice

Selecting between Wye and Delta configurations impacts system reliability, safety, and performance. The decision depends on your load characteristics, grounding requirements, and operational needs.

Wye configurations provide voltage flexibility and support both three-phase and single-phase loads. Delta configurations offer superior fault tolerance and harmonic handling for balanced three-phase loads.

Many systems benefit from hybrid approaches that combine Wye and Delta on different transformer sides. Understanding these relationships helps you avoid configuration mistakes that lead to equipment failures.
