The Role of the Step-Up and Step-Down Power Transformers

Your equipment arrives from overseas. You power it on, and nothing happens. Sometimes a component fails on the spot; other times, it overheats within minutes.

In many cases, the issue is simple: the incoming voltage doesn’t match the equipment's design. Step-up and step-down transformers prevent these failures by matching the available voltage to what your system needs.

Whether you’re integrating imported machinery, distributing power across a facility, or working in renewable energy, the right transformer protects efficiency and prevents equipment damage. The wrong one can cause everything from performance issues to complete failure.

Understanding how these transformer types differ—and where each belongs—determines whether your power system runs reliably or becomes a recurring maintenance problem. Clear specifications up front help you avoid costly mismatches long before equipment reaches the field.

What Step-Up and Step-Down Transformers Actually Do

Both transformer types change voltage levels, but they work in opposite directions. The distinction matters because the equipment and system you’re powering determine which one you need.

Step-Down Transformers: Reducing Voltage

A step-down transformer reduces the voltage from the input to the output. If you supply 480V to the primary winding, the secondary may deliver 240V or 120V, depending on the winding ratio. The voltage decreases, and the current capacity increases in proportion to that change.

These transformers are found throughout industrial facilities. They take high-voltage utility power and convert it to levels equipment can use safely.

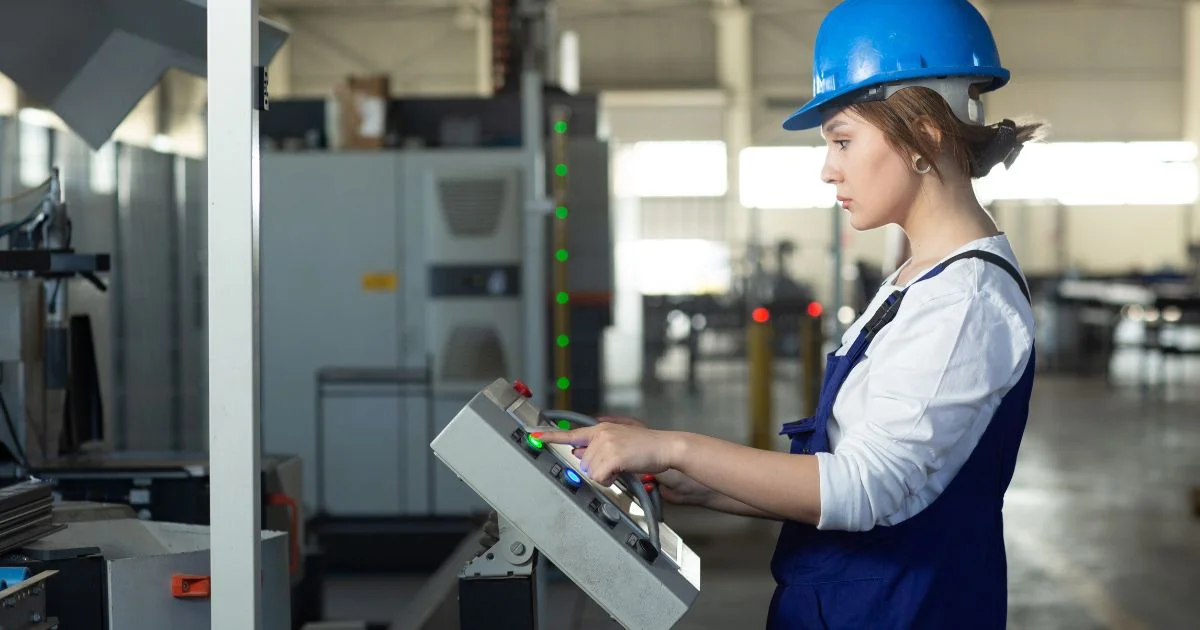

Manufacturing lines, control panels, and building systems all rely on step-down transformers to provide stable and appropriate voltage.

The transformation is determined by the winding ratio. When the primary winding has twice as many turns as the secondary, the output voltage is cut in half. The concept is straightforward. The details of the application determines whether the transformer performs reliably once installed.

Step-Up Transformers: Increasing Voltage

Step-up transformers do the opposite of step-down units. They increase the voltage from the input to the output. If you connect 240V to the primary winding, the secondary may deliver 480V depending on the winding ratio.

Voltage rises, and current capacity decreases accordingly.

Power generation and transmission systems rely heavily on step-up transformers. Wind turbines and solar farms produce power at relatively low voltages. That output is raised to higher levels for efficient transmission across distances. Higher voltage and lower current reduce power loss and allow the use of smaller conductors.

In renewable energy systems, step-up transformers are essential when connecting distributed generation to the grid. The same principles apply whether the project involves a small solar array or a utility-scale wind farm.

Where Step-Down Transformers Are Used

Step-down transformers handle most industrial power distribution tasks. They’re the workhorses that make high-voltage utility power usable for equipment.

Industrial Power Distribution

Manufacturing facilities often receive power at higher voltage, commonly 480V or higher in North America, which aligns with documented typical commercial and industrial voltages. Most equipment, however, operates at lower levels: 240V for larger motors and machinery, and 120V for control systems and lighting.

Step-down transformers provide these voltages throughout the facility. A well-designed distribution layout places transformers close to the loads they serve. This reduces voltage drop and minimizes copper losses.

International Equipment

Equipment designed for one region’s voltage standard won't operate correctly in another. North American systems typically use 120V and 240V. Many other regions use 230V single-phase or 400V three-phase.

A step-down transformer allows imported equipment to run safely. A machine rated for 230V, for example, can operate in a North American facility with 480V service when paired with the right transformer.

This matters for organizations bringing in specialized manufacturing tools, medical devices, or laboratory instruments. Modifying equipment for different voltages is often impractical and can void warranties.

Medical and Laboratory Equipment

Sensitive diagnostic and laboratory equipment requires a stable, clean voltage. Medical imaging systems, patient monitors, and research instruments often rely on step-down transformers to isolate them from power issues in the facility.

These applications commonly combine voltage transformation with isolation. The step-down function sets the correct voltage, while galvanic isolation protects users and equipment from electrical faults.

Where Step-Up Transformers Are Essential

Step-up transformers address different requirements. They’re important when voltage needs to be increased for improved transmission efficiency or to meet equipment specifications.

Renewable Energy Systems

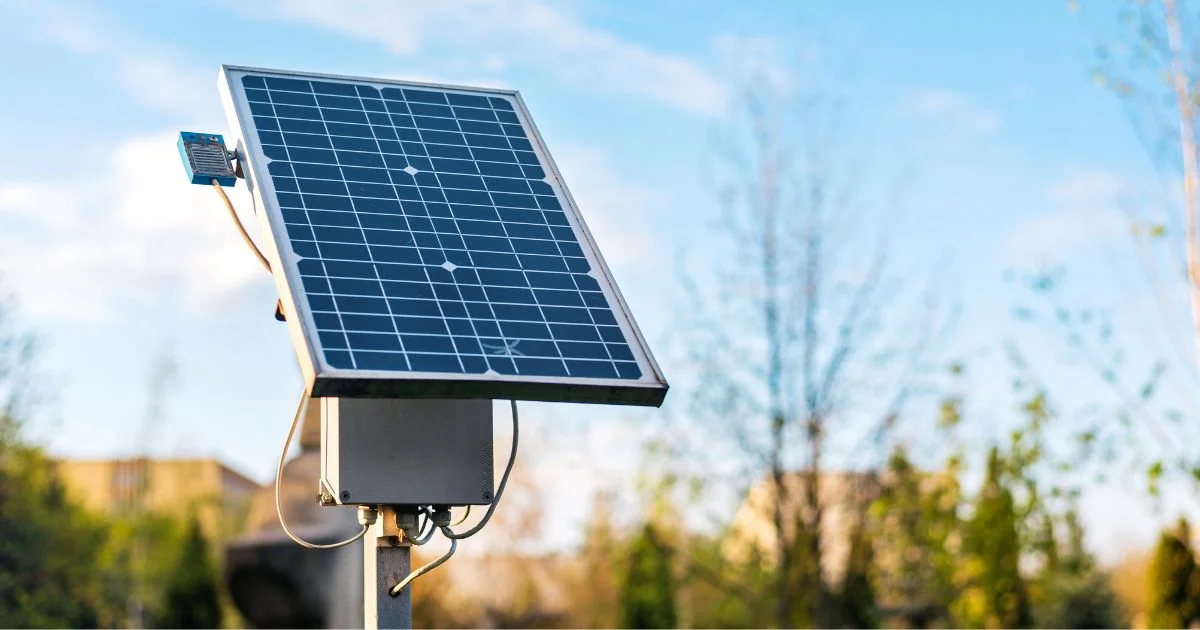

Solar panels produce DC power that inverters convert to AC at relatively low voltages. To connect that power to the grid, a higher voltage is required. Step-up transformers raise the inverter output so the system can feed into distribution lines efficiently.

A typical solar installation might output 480V three-phase. Local distribution feeders often operate at 12kV or higher. The transformer bridges this gap and allows reliable power injection into the grid.

Wind turbines follow the same pattern. Generator output voltages are lower than the transmission levels needed across the site. Step-up transformation happens at each turbine or at collection points across the wind farm.

Electric Vehicle Charging

DC fast chargers introduce their own challenges. The charging equipment may operate at lower internal voltages, but connecting to a utility three-phase service often requires voltage transformation.

Some charging sites use step-up transformers to distribute power to multiple chargers. Others use them to match the available utility voltage with the charger’s input requirements.

Design Considerations for Transformers

Choosing between step-up and step-down transformers involves more than voltage ratios. Several factors influence how well a transformer performs under real operating conditions.

Power Rating and Load Characteristics

Transformers are rated in volt-amperes (VA) or kilovolt-amperes (kVA). The transformer must handle the full load current without overheating, which means understanding both continuous and peak demand.

Inductive loads such as motors draw high starting currents. Capacitive loads can create leading power factors. Nonlinear loads from variable-frequency drives introduce harmonics. Each of these affects how the transformer behaves once installed.

Electronic Craftsmen designs transformers ranging from milliwatts to 50 kVA at 60 Hz and up to 200 kVA at 20 kHz, with attention to load characteristics and duty-cycle requirements.

Efficiency and Heat Management

Energy losses inside a transformer manifest as heat. Core losses come from magnetic hysteresis and eddy currents. Copper losses are created by resistance in the windings. Both contribute to the transformer’s operating temperature.

Step-up and step-down transformers manage these losses through core selection, winding design, and thermal management. Temperature class ratings can reach 220°C. Class F (155°C) is common in industrial settings.

Ambient temperature also matters. Transformers in hot environments or enclosed cabinets need a different thermal design than those in climate-controlled facilities.

Isolation Requirements

Some applications require galvanic isolation for safety or noise reduction. Others prioritize size and cost, making autotransformers a practical option.

Medical equipment, aerospace systems, and applications involving human contact often require isolation. Industrial motor drives and lighting systems frequently use autotransformers, where isolation is not needed.

The choice affects size, weight, and cost. Isolation transformers are larger and heavier than autotransformers with the same voltage ratio.

Frequency Requirements

Most industrial systems operate at 50 Hz or 60 Hz. Other applications run at higher frequencies. Switch-mode power supplies operate at kilohertz to megahertz frequencies and require different core materials and winding techniques.

Ferrite cores perform well above 20 kHz. Laminated silicon steel is better suited for power-frequency applications. The wrong material increases losses and heat.

Electronic Craftsmen has more than 25 years of experience designing switch-mode transformers for frequencies from 25 Hz to 500 kHz.

Common Mistakes in Transformer Selection

Certain issues appear repeatedly when step-up and step-down transformers are specified. Avoiding them reduces downtime and prevents costly equipment problems.

Undersizing for Peak Loads

Selecting a transformer based only on average load often leads to overheating during peak demand. Motors, for example, draw several times their rated current at startup. The transformer must handle these surges without saturating or exceeding its thermal limits.

Continuous duty ratings differ from intermittent ratings. A transformer may tolerate brief overloads but will fail early if they occur frequently. Understanding the actual load profile is more accurate than relying solely on nameplate values.

Ignoring Voltage Regulation

All transformers experience a voltage drop under load. The difference between no-load and full-load voltage can be significant. Poor voltage regulation leads to underperforming equipment, unstable operation, or repeated nuisance trips.

Winding resistance, leakage inductance, and core design all influence how well a transformer maintains voltage across varying load conditions. Applications with wide load swings require tighter regulation.

Three-Phase Configuration Errors

Three-phase transformers can be connected in Wye-Wye, Delta-Delta, Delta-Wye, or Wye-Delta configurations. Each arrangement affects grounding, phase relationships, and how harmonics move through the system.

In Ontario, electrical installations must follow the Ontario Electrical Safety Code, which adopts Canadian Electrical Code standards. Incorrect configuration can create phase-shift issues when paralleling transformers or coordinating protection systems.

Overlooking Harmonic Content

Modern facilities include many nonlinear loads, such as variable-frequency drives, switching power supplies, and LED lighting. These create harmonic currents that increase heating in transformer windings and cores.

Harmonics can also create resonance with system capacitance. Transformers serving these loads often need derating or specific design features to handle the added stress.

Making Transformers Work Reliably

Step-up and step-down transformers match the supply voltage to the equipment's requirements, keeping power systems stable across industrial, commercial, and renewable settings.

The right transformer manages load changes, reduces fault impacts, and supports long service life. A poor fit can lead to efficiency losses, equipment issues, and higher maintenance costs.

Good selection depends on load behavior, environmental conditions, and long-term system goals. Whether you're integrating international equipment, designing solar systems, or distributing power in a facility, the transformer you choose shapes performance from the start.

Electronic Craftsmen has designed thousands of transformers for applications from aerospace to renewable energy. Our team matches each design to real operating conditions, so systems stay reliable when downtime isn’t an option.

Have questions about voltage conversion for your application? The right transformer design can support long-term performance and reduce avoidable issues.
